3：word2vec
a 推导关于词向量的梯度
在以softmax为假设函数的word2vec中：
$$\begin{align}
\hat{\boldsymbol{y}}_{o} &= p(\boldsymbol{o} \vert \boldsymbol{c}) =
\frac{exp(\boldsymbol{u}_{0}^{T} \boldsymbol{v}_{c})}{\sum\limits_{w=1}^{W} exp(\boldsymbol{u}_{w}^{T} \boldsymbol{v}_{c})}
\end{align}$$
$\boldsymbol{v}_{c}$是中央单词的词向量，$\boldsymbol{w}$ 是第 $w$个词语， $\boldsymbol{u}_{w}$ ($w = 1,…,W$) 是词表中所有单词的输出词向量。假设使用交叉熵作为损失函数， $\boldsymbol{o}$ 为正确单词 (one-hot向量的第 $\boldsymbol{o}$维为1)，请推导损失函数关于$\boldsymbol{v}_c$的梯度。
一些有用的记号：
$$\begin{align}
J_{softmax-CE}(\boldsymbol{o}, \boldsymbol{v}_{c}, \boldsymbol{U}) &= CE(\boldsymbol{y}, \hat{\boldsymbol{y}})
\end{align}$$
其中$\boldsymbol{U}$ = $[\boldsymbol{u}_{1}$,$\boldsymbol{u}_{1}$,$\dots$, $\boldsymbol{u}_{W}]$是所有词向量构成的矩阵。
解答：
由于 $\frac{\partial J}{\partial \boldsymbol{z}} = (\hat{\boldsymbol{y}} – \boldsymbol{y})$ 是词表大小的“概率列向量”，而 $\boldsymbol{U}$ 是 $D\times W$ 的矩阵（$\boldsymbol{U} = [\boldsymbol{u}_{1}$,$\boldsymbol{u}_{1}$,$\dots$, $\boldsymbol{u}_{W}]$），$z=U^T \cdot v_c$，根据链式法则需要乘上$\boldsymbol{U}^{T}$的转置，即：
$$\begin{align}
\frac{\partial J}{\partial \boldsymbol{v_c}} &= %
\boldsymbol{U} (\hat{\boldsymbol{y}} - \boldsymbol{y}) \nonumber
\end{align}$$
b 推导关于lookup-table的梯度
与上题同理：
$$\begin{align}
\frac{\partial J}{\partial \boldsymbol{U}} &= %
\boldsymbol{v}_{c} (\hat{\boldsymbol{y}} - \boldsymbol{y})^{T} \nonumber
\end{align}$$
c 负采样时的梯度推导
假设进行负采样，样本数为$\boldsymbol{K}$，正确答案为$\boldsymbol{o}$，那么有$o \notin \{1,...,K\}$。负采样损失函数定义如下：
$$\begin{align}
J_{neg-sample}(\boldsymbol{o}, \boldsymbol{v}_{c}, \boldsymbol{U}) &= %
− log(\sigma(\boldsymbol{u}_{o}^{T} \boldsymbol{v}_{c})) - \sum\limits_{k=1}^{K} log(\sigma(-\boldsymbol{u}_{k}^{T} \boldsymbol{v}_{c}))
\end{align}$$
其中，
$$\begin{align} \sigma(x) &= \frac{1}{1 + e^{-x}} \nonumber \\ &= \frac{e^{x}}{1 + e^{x}} \nonumber \\ \frac{\partial}{\partial x} \sigma(x) &= \sigma(x) \times (1 - \sigma(x)) \nonumber \\ \end{align}$$
先对$v_c$求导吧，然后当成微分方程得到$u_o$或$u_k$的导数：
$$\begin{align}
\frac{\partial J}{\partial v_c}&=\left(\sigma(u_o^Tv_c)-1\right)u_o-\sum_{k=1}^K\left(\sigma(-u_k^Tv_c)-1\right)u_k\\
\frac{\partial J}{\partial u_o}&=\left(\sigma(u_o^Tv_c)-1\right)v_c\\
\frac{\partial J}{\partial u_k}&=-\left(\sigma(-u_k^Tv_c)-1\right)v_c\\
\end{align}$$
这个损失函数比交叉熵要快，因为仅仅计算负样本和答案的梯度$[w_{o}, w_{k},\dots,w_{K}]$，而不是 $\forall w_{j} \in W$。
d 全部梯度
推导窗口半径$m$的上下文[word$_{c−m}$ ,...,word$_{c−1}$ ,word$_{c}$ ,word$_{c+1}$ ,...,word$_{c+m}$ ]时，skip-gram 和 CBOW的损失函数$F(\boldsymbol{o}, \boldsymbol{v}_{c})$ ($\boldsymbol{o}$ 是正确答案的词向量）或说$J_{softmax-CE}(\boldsymbol{o},\boldsymbol{v}_{c},\dots)$ 或 $J_{neg-sample}(\boldsymbol{o},\boldsymbol{v}_{c},\dots)$ 关于每个词向量的梯度。
对于skip-gram来讲，$c$的上下文对应的损失函数是：
$$\begin{align}
J_{skip-gram}(word_{c-m \dots c+m}) &= %
\sum\limits_{-m \leq j \leq m, j \ne 0} F(\boldsymbol{w}_{c+j}, \boldsymbol{v}_{c})
\end{align}$$
这里 $\boldsymbol{w}_{c+j}$ 是离中心词距离$j$的那个单词。
而CBOW稍有不同，不使用中心词$\boldsymbol{v}_{c}$而使用上下文词向量的和 $\hat{\boldsymbol{v}}$ 作为输入去预测中心词：
$$\begin{align}
\hat{\boldsymbol{v}} &= \sum\limits_{-m \leq j \leq m, j \ne 0} \boldsymbol{v}_{c+j}
\end{align}$$
然后CBOW的损失函数是：
$$\begin{align}
J_{CBOW}(word_{c-m \dots c+m}) &= F(\boldsymbol{w}_{c}, \hat{\boldsymbol{v}})
\end{align}$$
解答：
根据前面的推导，知道如何得到梯度$\begin{align} \frac{\partial J}{\partial \boldsymbol{v_c}} &= \boldsymbol{U}^{T} (\hat{\boldsymbol{y}} - \boldsymbol{y}) \nonumber \end{align}$和$\begin{align} \frac{\partial J}{\partial \boldsymbol{U}} &= \boldsymbol{v}_{c} (\hat{\boldsymbol{y}} - \boldsymbol{y})^{T} \nonumber \end{align}$。那么所求的梯度可以写作：
skip-gram
$$\begin{align}
\frac{J_{skip-gram}(word_{c-m \dots c+m})}{\partial \boldsymbol{U}} &= %
\sum\limits_{-m \leq j \leq m, j \ne 0} \frac{\partial F(\boldsymbol{w}_{c+j}, \boldsymbol{v}_{c})}{\partial \boldsymbol{U}} \nonumber \\
%
\frac{J_{skip-gram}(word_{c-m \dots c+m})}{\partial \boldsymbol{v}_{c}} &= %
\sum\limits_{-m \leq j \leq m, j \ne 0} \frac{\partial F(\boldsymbol{w}_{c+j}, \boldsymbol{v}_{c})}{\partial \boldsymbol{v}_{c}} \nonumber \\
%
\frac{J_{skip-gram}(word_{c-m \dots c+m})}{\partial \boldsymbol{v}_{j}} &= 0, \forall j\ne c \nonumber
\end{align}$$
CBOW
$$\begin{align}
\frac{J_{CBOW}(word_{c-m \dots c+m})}{\partial \boldsymbol{U}} &= %
\frac{\partial F(\boldsymbol{w}_{c}, \hat{\boldsymbol{v}})}{\partial \boldsymbol{U}} \nonumber \\
%
\frac{J_{CBOW}(word_{c-m \dots c+m})}{\partial \boldsymbol{v}_{j}} &= %
\frac{\partial F(\boldsymbol{w}_{c}, \hat{\boldsymbol{v}})}{\partial \hat{\boldsymbol{v}}}, \forall (j \ne c) \in \{c-m \dots c+m\} \nonumber \\
%
\frac{J_{CBOW}(word_{c-m \dots c+m})}{\partial \boldsymbol{v}_{j}} &= 0, %
\forall (j \ne c) \notin \{c-m \dots c+m\} \nonumber
\end{align}$$
e 实现SGD训练
将矩阵的每个行向量的长度归一化为1：
def normalizeRows(x): """ Row normalization function Implement a function that normalizes each row of a matrix to have unit length. """ ### YOUR CODE HERE denom = np.apply_along_axis(lambda x: np.sqrt(x.T.dot(x)), 1, x) x /= denom[:, None] ### END YOUR CODE return x
交叉熵损失与梯度：
def softmaxCostAndGradient(predicted, target, outputVectors, dataset):
""" Softmax cost function for word2vec models
Implement the cost and gradients for one predicted word vector
and one target word vector as a building block for word2vec
models, assuming the softmax prediction function and cross
entropy loss.
Arguments:
predicted -- numpy ndarray, predicted word vector (\hat{v} in
the written component)
target -- integer, the index of the target word
outputVectors -- "output" vectors (as rows) for all tokens
dataset -- needed for negative sampling, unused here.
Return:
cost -- cross entropy cost for the softmax word prediction
gradPred -- the gradient with respect to the predicted word
vector
grad -- the gradient with respect to all the other word
vectors
We will not provide starter code for this function, but feel
free to reference the code you previously wrote for this
assignment!
"""
### YOUR CODE HERE
## Gradient for $\hat{\boldsymbol{v}}$:
# Calculate the predictions:
vhat = predicted
z = np.dot(outputVectors,vhat)
preds = softmax(z)
# Calculate the cost:
cost = -np.log(preds[target])
# Gradients
z = preds.copy()
z[target] -= 1.0
grad = np.outer(z, vhat)
gradPred = np.dot(outputVectors.T, z)
### END YOUR CODE
return cost, gradPred, grad
负采样与梯度：
def negSamplingCostAndGradient(predicted, target, outputVectors, dataset, K=10): """ Negative sampling cost function for word2vec models Implement the cost and gradients for one predicted word vector and one target word vector as a building block for word2vec models, using the negative sampling technique. K is the sample size. Note: See test_word2vec below for dataset's initialization. Arguments/Return Specifications: same as softmaxCostAndGradient """ # Sampling of indices is done for you. Do not modify this if you # wish to match the autograder and receive points! indices = [target] indices.extend(getNegativeSamples(target, dataset, K)) ### YOUR CODE HERE grad = np.zeros(outputVectors.shape) gradPred = np.zeros(predicted.shape) cost = 0 z = sigmoid(np.dot(outputVectors[target], predicted)) cost -= np.log(z) grad[target] += predicted * (z - 1.0) gradPred += outputVectors[target] * (z - 1.0) for k in xrange(K): samp = indices[k + 1] z = sigmoid(np.dot(outputVectors[samp], predicted)) cost -= np.log(1.0 - z) grad[samp] += predicted * z gradPred += outputVectors[samp] * z ### END YOUR CODE return cost, gradPred, grad
skipgram：
def skipgram(currentWord, C, contextWords, tokens, inputVectors, outputVectors, dataset, word2vecCostAndGradient=softmaxCostAndGradient): """ Skip-gram model in word2vec Implement the skip-gram model in this function. Arguments: currrentWord -- a string of the current center word C -- integer, context size contextWords -- list of no more than 2*C strings, the context words tokens -- a dictionary that maps words to their indices in the word vector list inputVectors -- "input" word vectors (as rows) for all tokens outputVectors -- "output" word vectors (as rows) for all tokens word2vecCostAndGradient -- the cost and gradient function for a prediction vector given the target word vectors, could be one of the two cost functions you implemented above. Return: cost -- the cost function value for the skip-gram model grad -- the gradient with respect to the word vectors """ cost = 0.0 gradIn = np.zeros(inputVectors.shape) gradOut = np.zeros(outputVectors.shape) ### YOUR CODE HERE cword_idx = tokens[currentWord] vhat = inputVectors[cword_idx] for j in contextWords: u_idx = tokens[j] c_cost, c_grad_in, c_grad_out = \ word2vecCostAndGradient(vhat, u_idx, outputVectors, dataset) cost += c_cost gradIn[cword_idx] += c_grad_in gradOut += c_grad_out ### END YOUR CODE return cost, gradIn, gradOut
f 实现SGD
mini-batch已经写好了，学习率递减也写好了，直接算梯度乘以学习率即可：
def sgd(f, x0, step, iterations, postprocessing=None, useSaved=False, PRINT_EVERY=10): """ Stochastic Gradient Descent Implement the stochastic gradient descent method in this function. Arguments: f -- the function to optimize, it should take a single argument and yield two outputs, a cost and the gradient with respect to the arguments x0 -- the initial point to start SGD from step -- the step size for SGD iterations -- total iterations to run SGD for postprocessing -- postprocessing function for the parameters if necessary. In the case of word2vec we will need to normalize the word vectors to have unit length. PRINT_EVERY -- specifies how many iterations to output loss Return: x -- the parameter value after SGD finishes """ # Anneal learning rate every several iterations ANNEAL_EVERY = 20000 if useSaved: start_iter, oldx, state = load_saved_params() if start_iter > 0: x0 = oldx step *= 0.5 ** (start_iter / ANNEAL_EVERY) if state: random.setstate(state) else: start_iter = 0 x = x0 if not postprocessing: postprocessing = lambda x: x expcost = None for iter in xrange(start_iter + 1, iterations + 1): # Don't forget to apply the postprocessing after every iteration! # You might want to print the progress every few iterations. cost = None ### YOUR CODE HERE cost, grad = f(x) x -= step * grad postprocessing(x) ### END YOUR CODE if iter % PRINT_EVERY == 0: if not expcost: expcost = cost else: expcost = .95 * expcost + .05 * cost print "iter %d: %f" % (iter, expcost) if iter % SAVE_PARAMS_EVERY == 0 and useSaved: save_params(iter, x) if iter % ANNEAL_EVERY == 0: step *= 0.5 return x
g 在斯坦福情感树库上训练词向量
只要运行q3_run.py就行了：
iter 40000: 9.587131 sanity check: cost at convergence should be around or below 10 training took 5090 seconds

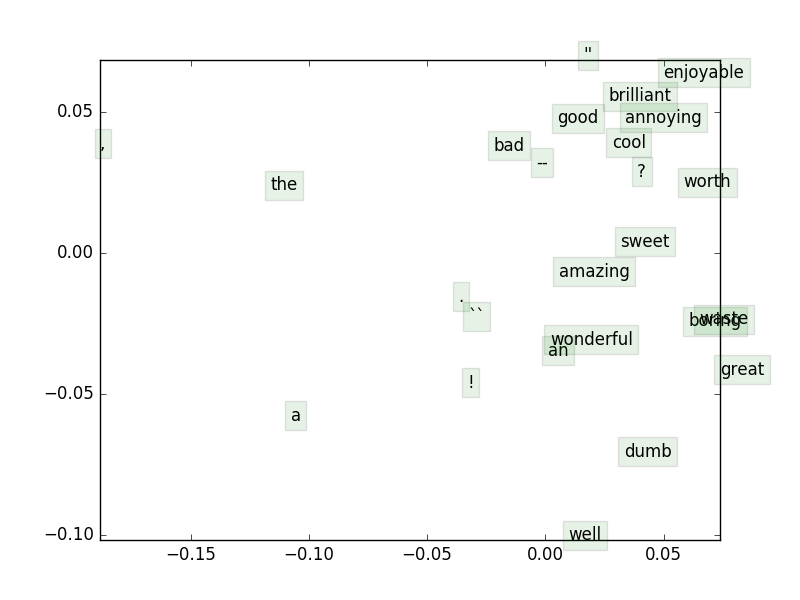

得到：
h 附加题：实现CBOW
def cbow(currentWord, C, contextWords, tokens, inputVectors, outputVectors, dataset, word2vecCostAndGradient=softmaxCostAndGradient): """CBOW model in word2vec Implement the continuous bag-of-words model in this function. Arguments/Return specifications: same as the skip-gram model Extra credit: Implementing CBOW is optional, but the gradient derivations are not. If you decide not to implement CBOW, remove the NotImplementedError. """ cost = 0.0 gradIn = np.zeros(inputVectors.shape) gradOut = np.zeros(outputVectors.shape) ### YOUR CODE HERE predicted_indices = [tokens[word] for word in contextWords] predicted_vectors = inputVectors[predicted_indices] predicted = np.sum(predicted_vectors, axis=0) target = tokens[currentWord] cost, gradIn_predicted, gradOut = word2vecCostAndGradient(predicted, target, outputVectors, dataset) for i in predicted_indices: gradIn[i] += gradIn_predicted ### END YOUR CODE return cost, gradIn, gradOut
这里上下文向量是所有上下文词向量的和，却把梯度应用到了所有的上下文词向量上去。虽然看上去挺疯狂，但就是管用。
4 情感分析
在斯坦福情感树库做5个类别的情感分析，模型是简单的softmax，仅要求准确率至少$36.5\%$。
a 特征向量
一种最简单的特征选择方法就是取所有词向量的平均：
def getSentenceFeatures(tokens, wordVectors, sentence): """ Obtain the sentence feature for sentiment analysis by averaging its word vectors """ # Implement computation for the sentence features given a sentence. # Inputs: # tokens -- a dictionary that maps words to their indices in # the word vector list # wordVectors -- word vectors (each row) for all tokens # sentence -- a list of words in the sentence of interest # Output: # - sentVector: feature vector for the sentence sentVector = np.zeros((wordVectors.shape[1],)) ### YOUR CODE HERE for s in sentence: sentVector += wordVectors[tokens[s], :] sentVector *= 1.0 / len(sentence) ### END YOUR CODE assert sentVector.shape == (wordVectors.shape[1],) return sentVector
b 正则化的意义
避免过拟合，提高对未知实例的泛化能力。
c 调参
在验证集上搜索超参数：
def getRegularizationValues():
"""Try different regularizations
Return a sorted list of values to try.
"""
values = None # Assign a list of floats in the block below
### YOUR CODE HERE
values = np.logspace(-4, 2, num=100, base=10)
### END YOUR CODE
return sorted(values)
def chooseBestModel(results):
"""Choose the best model based on parameter tuning on the dev set
Arguments:
results -- A list of python dictionaries of the following format:
{
"reg": regularization,
"clf": classifier,
"train": trainAccuracy,
"dev": devAccuracy,
"test": testAccuracy
}
Returns:
Your chosen result dictionary.
"""
bestResult = None
### YOUR CODE HERE
bestResult = max(results, key=lambda x: x["dev"])
### END YOUR CODE
return bestResult
d 词向量的影响
用自己的词向量训练模型，与用GloVe预训练的词向量的模型作比较，为什么后者好？

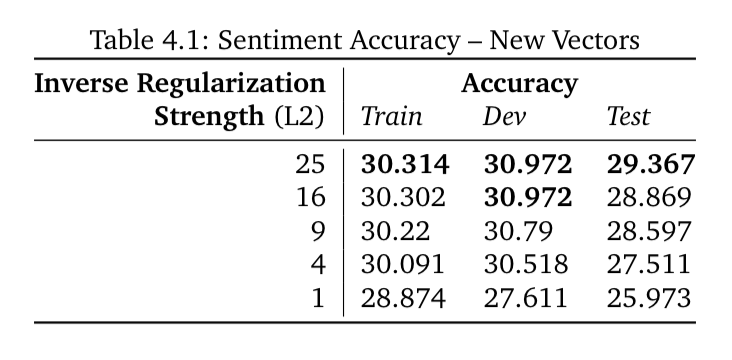

自己的词向量：

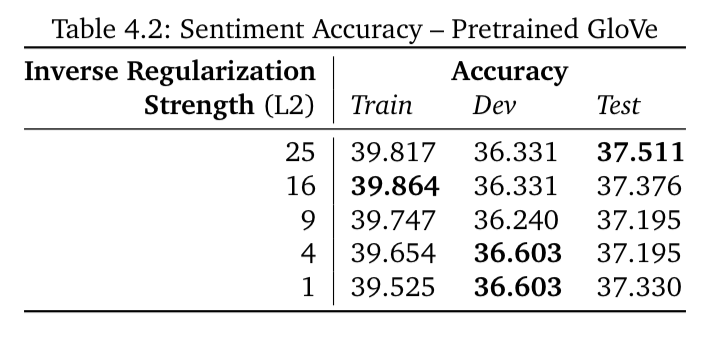

GloVe的词向量：
后者更好的原因是：
-
后者在维基上训练，数据量更大
-
后者维度更高（50维）
-
GloVe利用了全局统计信息，而word2vec（SG）没有

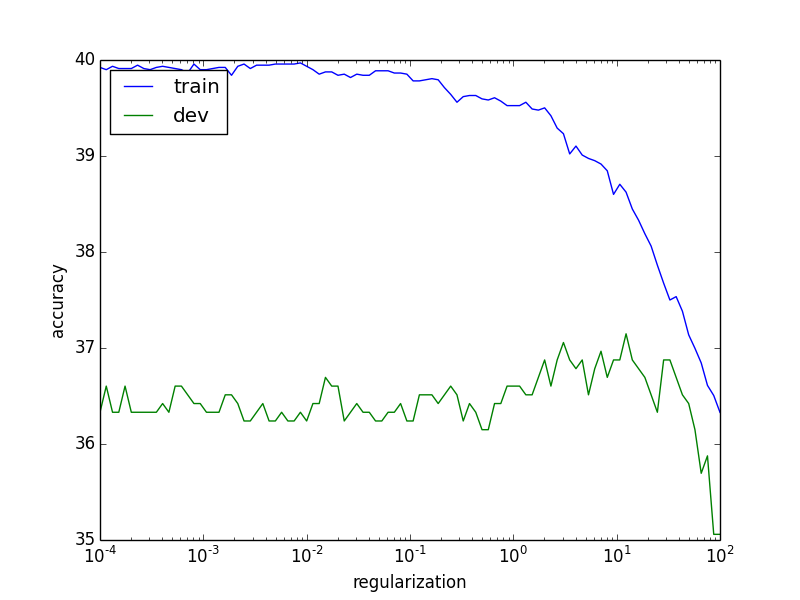

e 惩罚因子对效果的影响
f confusion matrix
脚本会自动生成confusion matrix：
这个矩阵的主对角线上的元素越多，说明预测越正确。其他元素都是失误。可见模型很难分辨“中性”情感，并倾向于将其分入负面。但模型没有犯下大是大非的错误（将--分入++，或反之）。
g 错误分析
查看q4_dev_pred.txt中的输出，想想看什么特征可能提高效果？
-
13nothing is sacred in this gut-buster .
说反话，词袋模型的软肋 -
31and if you 're not nearly moved to tears by a couple of scenes , you 've got ice water in your veins .
不理解习语“moved to tears”，不理解整句话
-
30... routine , harmless diversion and little else .
语料标注错误
Reference
https://github.com/hankcs/CS224n
https://github.com/rymc9384/DeepNLP_CS224N.git
